Apple

(information from WWW )


Specifications:

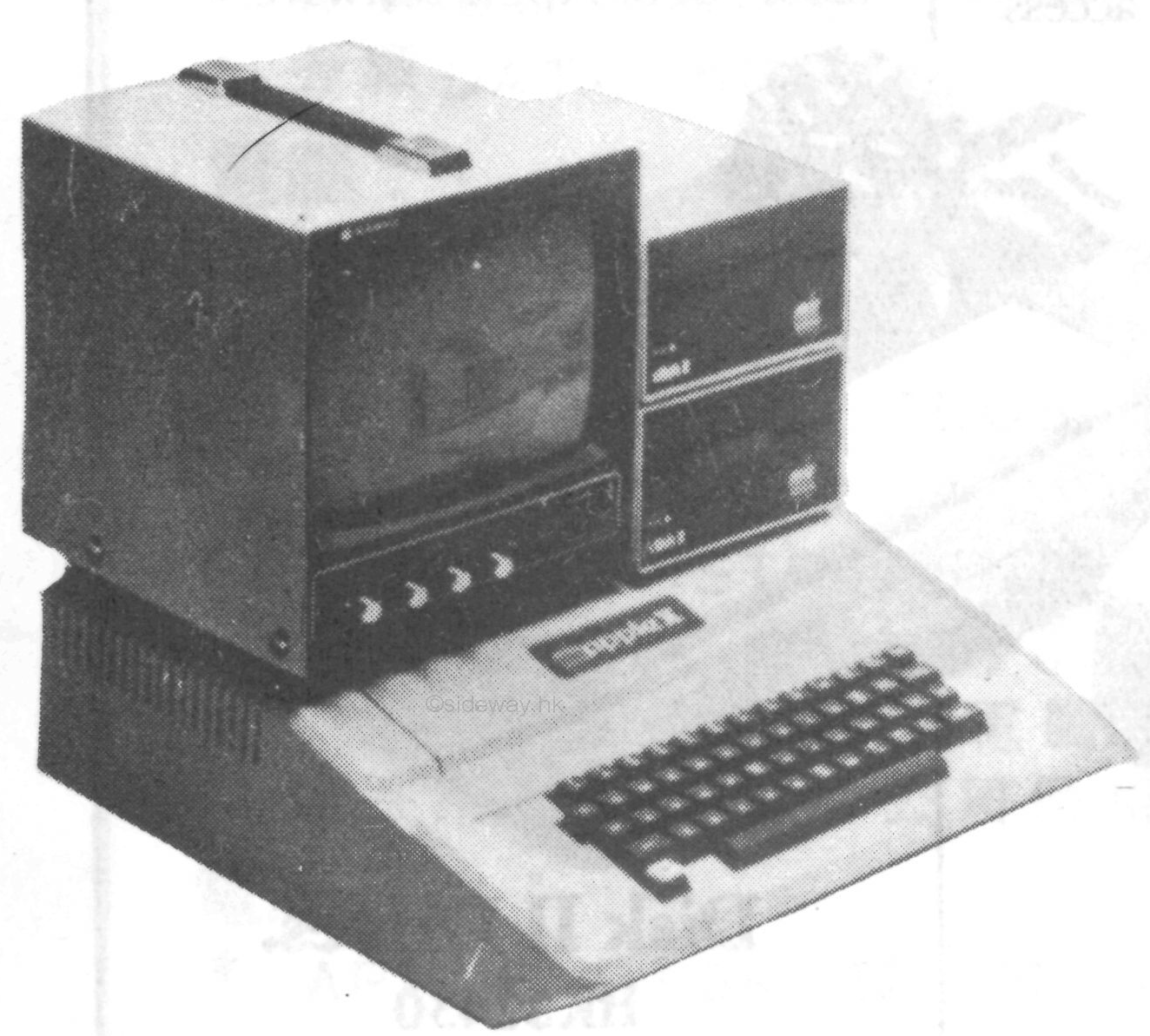

Name Apple II
Logic Board Processor: 6502
  Processor Speed: 1 MHz
  Bus Speed: 1 MHz
  Data Path: 8-bit
  ROM Size: 12K (Monitor + Integer Basic + "sweet 16" mini-assembler)
  Expansion Slots: 8 Apple II Proprietary Slots
Memory Min - Max RAM: 4K - 48K
RAM Sizes: 4K, 8K, 12K,16K, 20K, 24K, 32K, 36K, 48K
Onboard RAM: 4K - 48K
Note: RAM can be installed using 4K chips or 16K chips
I/O Ports Video out (composite), 8 expansion slots, Tape recorder, Paddles
Video Display Resolution 40 x 40-48 (16 colors), 280 x 192 (4 and later 6 colors)
40 columns by 24 rows
Composite monitor or RF Modulator to TV supported
External Storage Audio Cassette Tape or 5.25-inch floppy drives
Operating System Primary OS: Apple DOS; Languages in ROM: Integer BASIC; Addressing Modes: 8-bit
Dimensions (Inches) 4.25 H x 15.25 W x 17.75 D
Average Weight (lbs) 11.5
