Panasonic
(information from
Panasonic)
Product Main Features and Advantages
Equipped with nanoe®X Air Purifying System (Read more)
Inhibiting 99.99% SARS-CoV-2
Wi-Fi function, supported with Panasonic Comfort Cloud App** (Installation of Wi-Fi Adapter CZ-TACG1 is required)
"Inverter" adjusts output power finely to maintain a constant temperature and conserve energy
Environmental Friendly R32 Refrigerant
Product Specification
1 HP (Cooling Model)
9,045 Btu/h
Grade 1 Energy Label
Warranty
1 year warranty: Entire unit
5 years warranty: Compressor
Complimentary 1 year of Scaffolding Supporting Plan, starting from the purchase date of 1/10/2025 - 30/9/2026.
Installation Reference
Reference for Cooling Capacity of Air Conditioner and Room Size
**Currently only available in Hong Kong
Specifications:

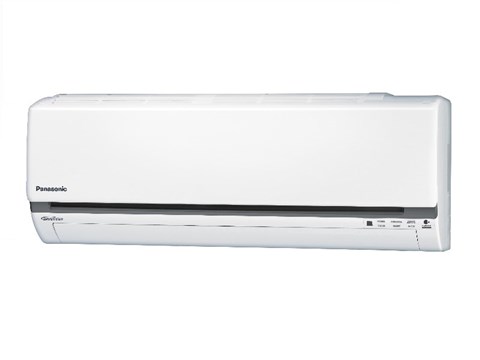

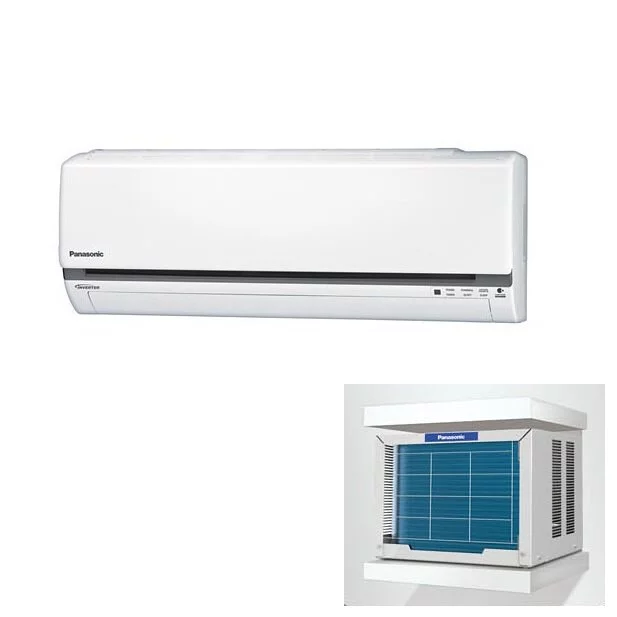

Model No.CS-U9YWA
Air-Conditioner
OutdoorCU-U9YWA
Inverter ●
Remote Control ●
Air-purifying System nanoe-X+nanoe-G
Seasonal Performance Factor
Cooling Seasonal Performance Factor (CSPF)4.987
Moisture Removal
L/h 1.5
Air Circulation(Indoor / Hi)
m³/min. 9.9
Outdoor Unit Dimension(H x W x D)
mm348 x 443 x 373
Piping Diameter
Liquid mm / inch ψ6.35 / 1/4"
Gas mm / inch ψ9.52 / 3/8"
Power Supply Indoor
WiFi Adapter ●
Cooling Capacity
Btu/h 9,045
kW2.65
EER
W/W 3.15
Power Supply
Voltage V 220
Power Consumption A4.6
Input Power kW0.840
Power Plug3-round-pin 15A plug
Indoor Unit Dimension(H x W x D)
mm 295 x 798 x 235
Net Weight
Indoor Unit 10 kg
Outdoor 20 kg
