Yamaha CRW2200
 Yamaha Website
 Links of CRW2200

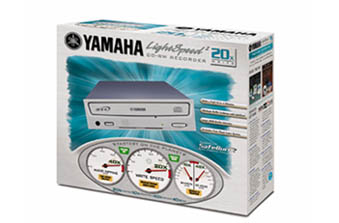

Yamaha CRW2200

(information from Yamaha)

image image

Product Features:

Model Number CRW2200E-VK E-IDE(ATAPI)
Support Format CD-DA(*4), CD-TEXT, CD-ROM(*1),
Mixed Mode CD-ROM(CD-ROM+CD-DA)(*4), CD-ROM XA(*1)(*4),
PhotoCD(*1)(*2)(*3)(*4), VideoCD(*4), CD-i(*3), CD EXTRA(*1)(*4)
Writing Modes Disc at once(DAO), Session at once(SAO)
Track at once(TAO), Packet Writing
Writing Speeds(CD-R) 1X, 2X, 4X, 8X, 12X, 16X(*5), 20X(*6)
Writing Speeds(CD-RW) 2X, 4X, 8X, 10X (CLV), 4~10X (Full CAV)
Readig Speed Max. 40X (Full CAV)
Burst Transfer Rate Program I/O(PIO)mode 4: 16.7MB/s
Multiword DMA mode 2: 16.7MB/s
Ultra DMA mode 2 Ultra DMA/33 : 33.3MB/s
Data Buffer Size 8MB (3,224 sectors)
Avarage Access Speed 150ms (random)
Interface E-IDE(ATAPI)
Installation Horizontal
Disc Loading Front Auto Loading Tray
Audio Out (Analog) Frequency range: 20Hz ~20,000Hz Output Level: 700mVrms
Audio Out (Digital) SPDIF Format Output Level: TTL
Power Consumption
 Write/Read
 Stand-by
 Sleep

11W
4W
1W
Power Supply +5V DC+/-5% +12V DC+/-10%
Dimensions 148.0W 42.6H 198.1Dmm
Weight 0.9kg
Accessories Owner's Manual: 1
IDE Flat Cable: 1
Mounting Screws: 4
Audio Cable: 1
CD-R blank disc: 1
High Speed CD-RW blank disc: 1
Software Quick Start Guide (Win): 1
Writing Software CD-ROM (Win): 1
nero 5.5, InCD, NeroMIX (ahead software gmbh)
PC PC/AT compatible
OS Windows 95 (OSR2 or later)/98/98 Second Edition/Me/
Windows2000 Professional/NT4.0(Service Pack 3 or later)
CPU PentiumII 300MHz or faster
RAM 32MB or larger (64MB or larger recommended)
(*1)Includes multisession.
(*2)Requires discs exclusively designed for.
(*3)Requires software exclusively designed for.
(*4)Requires software for playback.
(*5)Max. 16X Partial CAV.
(*6)Max. 20X Partial CAV.

Yamaha Website

Links of CRW2200
