Content

Transform
 Class Transform(Animation)
 Class ReplacementTransform(Transform)
 Class TransformFromCopy(Transform)
 Example
  Code
  Output

Transform

The defined transform Animation in transform.py
  • transform.Transform(Animation)
    • transform.ReplacementTransform(Transform)
    • transform.TransformFromCopy(Transform)
    • transform.ClockwiseTransform(Transform)
    • transform.CounterclockwiseTransform(Transform)
    • transform.MoveToTarget(Transform)
    • transform.CyclicReplace(Transform)
      • transform.Swap(CyclicReplace)
    • transform.ApplyMethod(Transform)
      • transform.ApplyPointwiseFunction(ApplyMethod)
        • transform.ApplyPointwiseFunctionToCenter(ApplyPointwiseFunction)
        • transform.ApplyMatrix(ApplyPointwiseFunction)
      • transform.FadeToColor(ApplyMethod)
      • transform.ScaleInPlace(ApplyMethod)
        • transform.ShrinkToCenter(ScaleInPlace)
      • transform.Restore(ApplyMethod)
      • transform.ApplyComplexFunction(ApplyMethod)
    • transform.ApplyFunction(Transform)
    • transform.TransformAnimations(Transform)

Class Transform(Animation)

Transform is used to transform the first specified VMobject at first one position animatedly into the second specified VMobject at second one position for given parameters along a straight path.

Class ReplacementTransform(Transform)

ReplacementTransform is used to replace the first specified VMobject at first one position animatedly with the second specified VMobject at second one position for given parameters along a straight path.

Class TransformFromCopy(Transform)

TransformFromCopy is used to make a copy of the first specified VMobject at first one position first and then replace the copy animatedly with the second specified VMobject at second one position for given parameters along a straight path.

Example

Code

# folder/file: tut/manim_animation_transformreplacementtransformfromcopy_001a.py

from manimlib.scene.scene import Scene
from manimlib.mobject.geometry import Circle, Square
from manimlib.animation.transform import Transform, ReplacementTransform, TransformFromCopy
from manimlib.mobject.svg.tex_mobject import TextMobject
from manimlib.animation.composition import AnimationGroup

class manim_animation_transformreplacementtransformfromcopy_001a(Scene):
   def construct(self):
        a1=TextMobject("Test1 Text").move_to([-5.5,2.5,0])
        a2=TextMobject("T2 Text").move_to([-3,2.5,0])
        a3=Circle().scale(0.5).move_to([-0.5,2.5,0])
        a4=Square().scale(0.5).move_to([2,2.5,0])
        b1=TextMobject("Test1 Text").move_to([-5.5,0,0])
        b2=TextMobject("T2 Text").move_to([-3,0,0])
        b3=Circle().scale(0.5).move_to([-0.5,0,0])
        b4=Square().scale(0.5).move_to([2,0,0])
        c1=TextMobject("Test1 Text").move_to([-5.5,-2.5,0])
        c2=TextMobject("T2 Text").move_to([-3,-2.5,0])
        c3=Circle().scale(0.5).move_to([-0.5,-2.5,0])
        c4=Square().scale(0.5).move_to([2,-2.5,0])
        self.add(TextMobject("Transform").move_to([0,3.5,0]),TextMobject("ReplacementTransform").move_to([0,1,0]),TextMobject("TransformFromCopy").move_to([0,-1.5,0]))
        self.add(a1,a2,a3,a4,b1,b2,b3,b4,c1,c2,c3,c4)
        self.wait(3)
        self.play(AnimationGroup(Transform(a1,a2),ReplacementTransform(b1,b2),TransformFromCopy(c1,c2)),run_time=5)
        self.wait(3)
        a1.move_to([-5.5,3,0])
        b1.move_to([-5.5,0.5,0])
        c1.move_to([-5.5,-2,0])
        self.wait(2)
        a2.move_to([-3,1.5,0])
        b2.move_to([-3,-1,0])
        c2.move_to([-3,-3.5,0])
        self.wait(3)
        self.play(AnimationGroup(Transform(a1,a3),ReplacementTransform(b1,b3),TransformFromCopy(c1,c3)),run_time=5)
        self.wait(3)
        self.play(AnimationGroup(Transform(a2,a4),ReplacementTransform(b2,b4),TransformFromCopy(c2,c4)),run_time=5)
        self.wait(3)

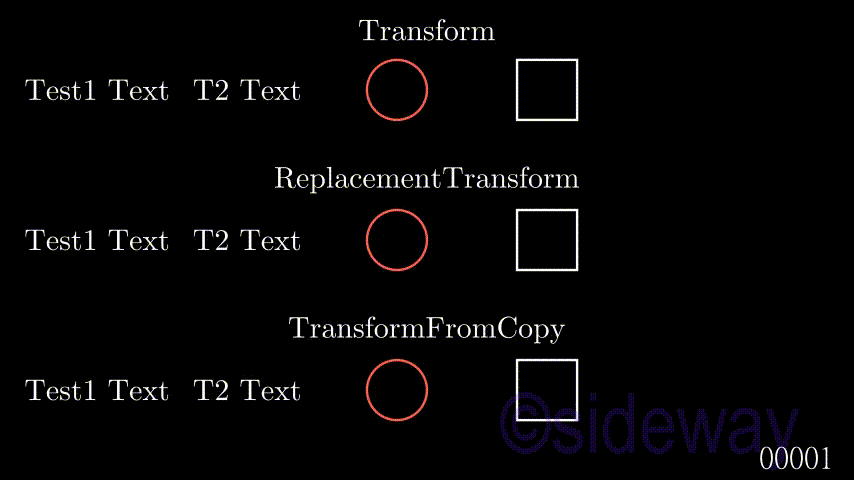

Output


©sideway

ID: 201100026 Last Updated: 11/26/2020 Revision: 0
