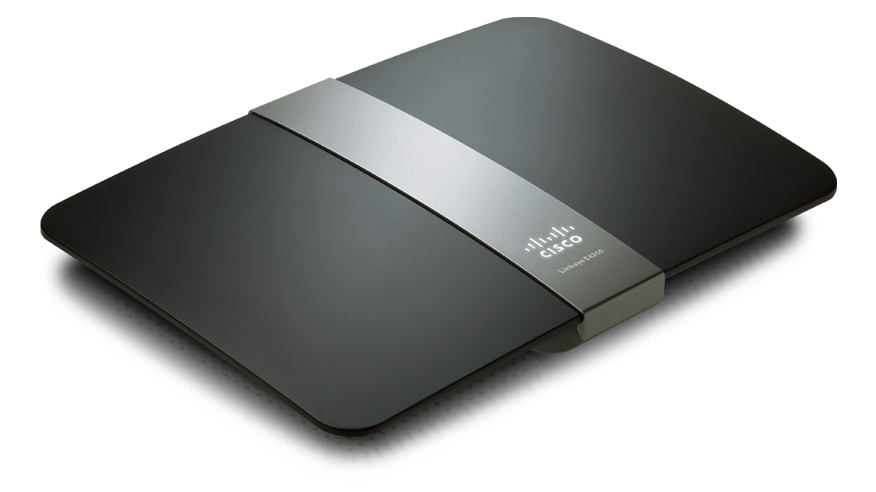

E4200

(information from Linksys)

Product Specifications:

Model	E4200
Standards	802.11n, 802.11a, 802.11g, 802.11b, 802.3, 802.3u, 802.3ab
Radio Frequency	2.4 and 5 GHz
Switch Port Speed	10/100/1000 Mbps (Gigabit Ethernet)
Ports	Power, USB, Internet, Ethernet (1-4)
Buttons	Reset, Wi-Fi Protected Setup
LEDs	Top Panel: Power Back Panel: Internet, Ethernet (1-4)
Number of Antennas	6 Total, 3 Internal Antennas per Each 2.4 GHz and 5 GHz Radio Band
Detachable (y/n)	No
Modulations	802.11b: CCK, QPSK, BPSK 802.11g: OFDM 802.11a: OFDM 802.11n: BPSK, QPSK, 16-QAM, 64‑QAM
Receive Sensitivity	2.4 GHz 802.11b: -87 dBm @ 11 Mbps (Typical) 802.11g: -77 dBm @ 54 Mbps (Typical) 802.11n: 20 MHz: -71 dBm @ MCS15 (Typical) 802.11n: 40 MHz: -68 dBm @ MCS15 (Typical) 5 GHz 802.11a: -71 dBm @ 54 Mbps (Typical) 802.11n: 20 MHz: -70 dBm @ MCS23 (Typical) 802.11n: 40 MHz: -68 dBm @ MCS23 (Typical)
Antenna Gain in dBi	2.4 GHz (3 internal PIFA antennas) PIFA 1 <= 3.6 dBi (Right) PIFA 2 <= 3.8 dBi (Left) PIFA 3 <= 3.8 dBi (Front) 5 GHz (3 internal PIFA antennas) PIFA 1 <= 4.8 dBi (Right) PIFA 2 <= 5.3 dBi (Left) PIFA 3 <= 5.2 dBi (Front)
Supported File Systems for Storage Device	FAT32, NTFS, and HSF+
UPnP	Supported
Security Features	WEP, WPA, WPA2
Security Key Bits	Up to 128-Bit Encryption
Environmental
Dimensions	8.86" x 0.98" x 6.30" (225 x 25 x 160 mm)
Unit Weight	12.52 oz (355 g)
Power	12V, 2A
Certifications	FCC, IC, CE, Wi-Fi a/b/g/n, Windows 7
Operating Temp.	32 to 104°F (0 to 40°C)
Storage Temp.	-4 to 140°F (-20 to 60°C)
Operating Humidity	10 to 80% Relative Humidity, Noncondensing
Storage Humidity	5 to 90% Noncondensing
