Simple Line Geometry of Cyclic Points

Points are equally spaced in the form of a circle can be used to plot some simple line geometry by joining data points with lines.

dwlingeom

Code:

function varargout=dwlingeom(varargin)
%dwlingeom plots 2D line polygon
%
% dwlingeom
% to plot a 100-sided line polygon with circumcircle centre at [0,0] and radius of circumcircle equals to 1.
%
% varargout: ([],[a],[b],[c])
%
% varargint: ([a],[b],[c],[d])
%
% dwlingeom(n)
% for n=1, one single point is plotted at y equals to 0 and x equals to 0 plus offset radius 1 based on circumcircle centre at [0,0].
% for n=2, a line is plotted parallel to x-axis at y equals to 0 and x equals to 0 plus offset radius 1 based on circumcircle centre at [0,0].
% for n>=3, a line polygon of n sides is plotted.
% to plot a n-sided line polygon with circumcircle centre at [0,0] and radius of circumcircle equals to 1.
%
% dwlingeom(n,r)
% to plot a n-sided line polygon with circumcircle centre at [0,0] and radius of circumcircle equals to r.
%
% dwlingeom(n,r,x)
% to plot a n-sided line polygon with circumcircle centre at [x,0] and radius of circumcircle equals to r.
%
% dwlingeom(n,r,x,y)
% to plot a n-sided line polygon with circumcircle centre at [x,y] and radius of circumcircle equals to r.
%
% ---------
% Copyright (c) 2014, All Right Reserved, http://sideway.hk/
% LastChanged:20/06/2014
% version:000.00001 created 20/06/2014 from sideway.hk
%
%
if nargin==0
n=100;r=1;x=0;y=0;
elseif nargin==1
n=varargin{1};r=1;x=0;y=0;
elseif nargin==2
n=varargin{1};r=varargin{2};x=0;y=0;
elseif nargin==3
n=varargin{1};r=varargin{2};x=varargin{3};y=0;
elseif nargin==4
n=varargin{1};r=varargin{2};x=varargin{3};y=varargin{4};
else
error('in argument more than four');
end
[a,b]=dwcirspace(n,r,x,y);
if nargout==0
plot(a,b);
elseif nargout==1
ha=plot(a,b);
varargout{1}=ha;
elseif nargout==2
ha=plot(a,b);
varargout{1}=ha;
varargout{2}=[a,b];
elseif nargout==3
ha=plot(a,b);
varargout{1}=ha;
varargout{2}=a;
varargout{3}=b;
else
error('out argument more than three');
end

Example

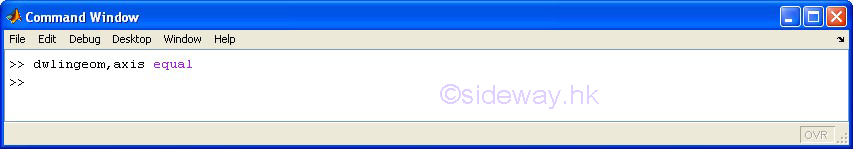

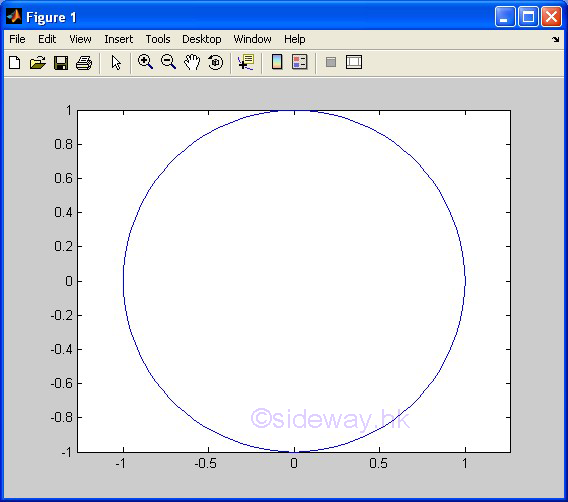

Use function dwlingeom with default value to generate a line 100-sided polygon with circumcircle centre at [0,0] and radius of circumcircle equals to 1.

Example:

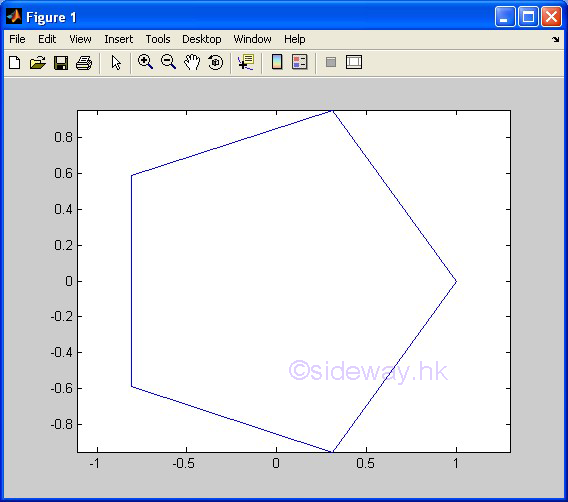

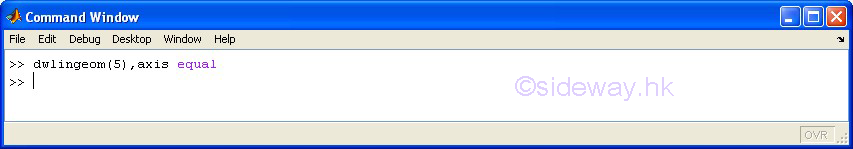

Use function dwlingeom with n=5 to generate a line regular pentagon with circumcircle centre at [0,0] and radius of circumcircle equals to 1.

Example:

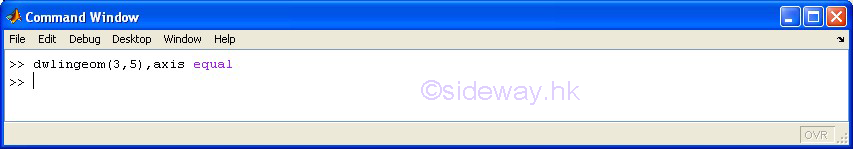

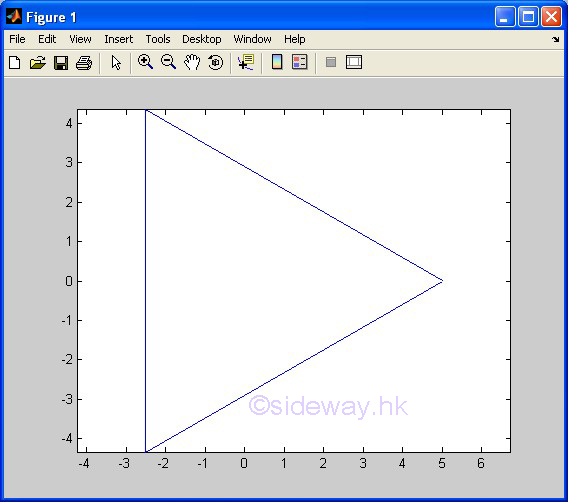

Use function dwlingeom with n=3 to generate a line equilateral triangle with circumcircle centre at [0,0] and radius of circumcircle equals to 5.

Example:

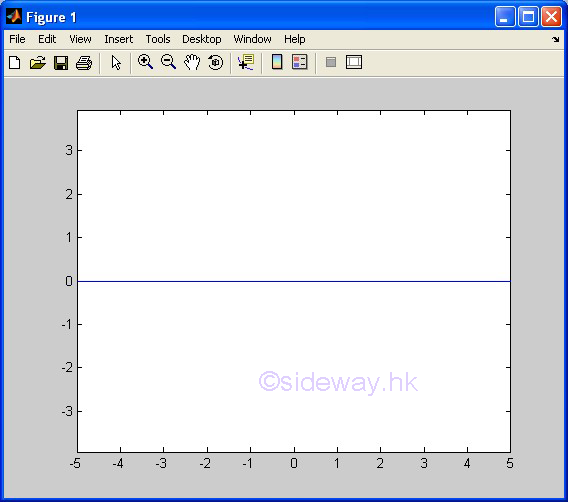

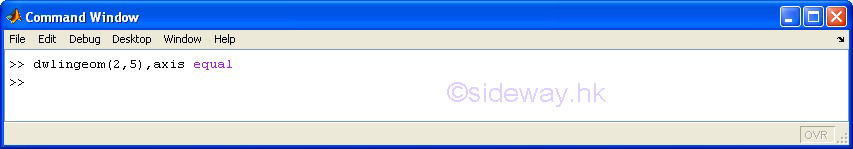

Use function dwlingeom with n=2 to generate a line with circumcircle centre at [0,0] and radius of circumcircle equals to 5, i.e. a line from [5,0] to [-5,0].

Example:

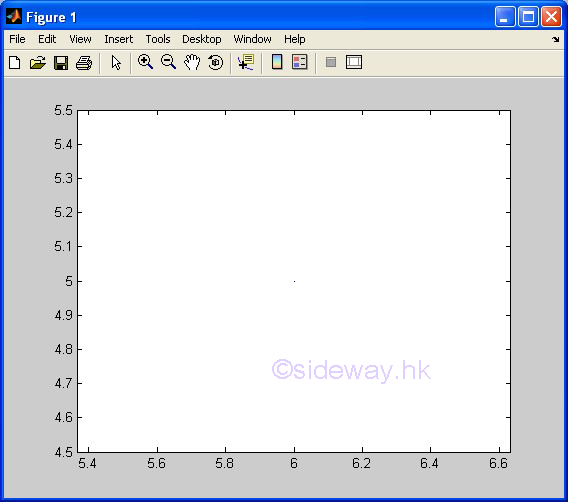

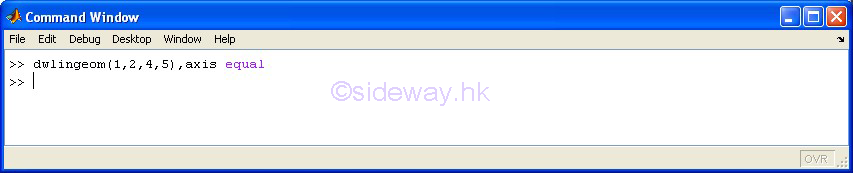

Use function dwlingeom with n=1 to plot a point at circle centre [4,5] with circle radius r equal to 2, i.e. a point at [6,5].

Example:
