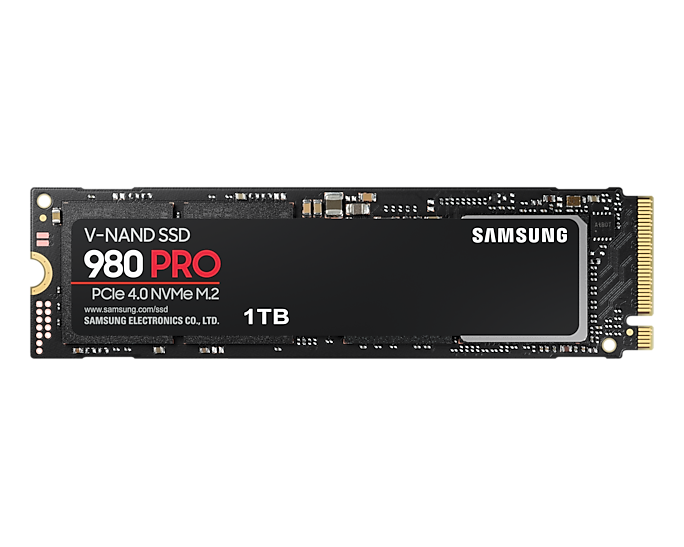

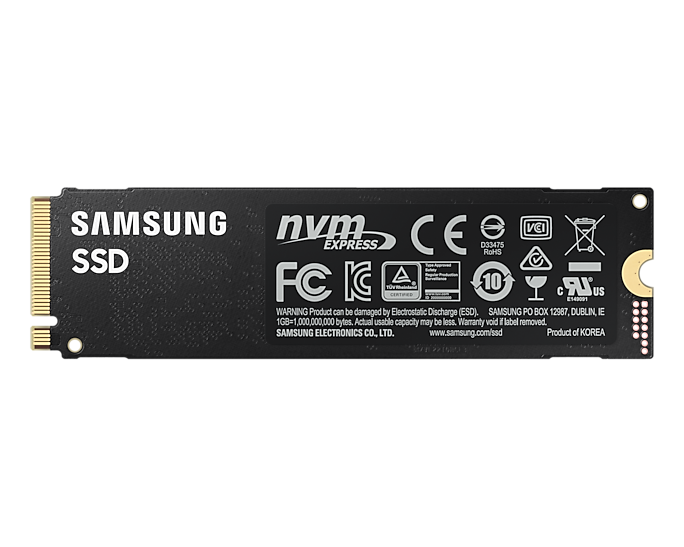

NVMe M2 SSD 980PRO

(information from SamSung Spec)

image image image image image

Specifications

NVMe M2 SSD 980PRO
General Form FactorM.2 Capacity250GB, 500GB, 1TB, 2TB Sequential Read SpeedUp to 7,000 MB/s Sequential Write SpeedUp to 5,100 MB/s Specification Model Code (Capacity)MZ-V8P250BW (250GB) MZ-V8P500BW (500GB) MZ-V8P1T0BW (1TB) MZ-V8P2T0BW (2TB) General Feature ApplicationClient PCs FORM FACTORM.2 (2280) INTERFACEPCIe® Gen 4.0 x4, NVMe™ 1.3c DIMENSION (WxHxD)80.15 x 22.15 x 2.38 (mm) WEIGHTMax 9.0 g STORAGE MEMORYSamsung V-NAND 3-bit MLC CONTROLLERSamsung In-house Controller CACHE MEMORYSamsung 512MB Low Power DDR4 SDRAM (250/500GB) Samsung 1GB Low Power DDR4 SDRAM (1TB) Samsung 2GB Low Power DDR4 SDRAM (2TB) Special Feature TRIM SupportSupported S.M.A.R.T SupportSupported GC (GARBAGE COLLECTION)Auto Garbage Collection Algorithm ENCRYPTION SUPPORTAES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive) WWN SUPPORTNot Supported DEVICE SLEEP MODE SUPPORTYes Performance SEQUENTIAL READ250GB: Up to 6,400 MB/s 500GB: Up to 6,900 MB/s 1TB: Up to 7,000 MB/s 2TB: Up to 7,000 MB/s SEQUENTIAL WRITE250GB: Up to 2,700 MB/s 500GB: Up to 5,000 MB/s 1TB: Up to 5,000 MB/s 2TB: Up to 5,100 MB/s RANDOM READ (4KB, QD32)250GB: Up to 500,000 IOPS 500GB: Up to 800,000 IOPS 1TB: Up to 1,000,000 IOPS 2TB: Up to 1,000,000 IOPS RANDOM WRITE (4KB, QD32)250GB: Up to 600,000 IOPS 500GB: Up to 1,000,000 IOPS 1TB: Up to 1,000,000 IOPS 2TB: Up to 1,000,000 IOPS RANDOM READ (4KB, QD1)250GB: Up to 22,000 IOPS 500GB: Up to 22,000 IOPS 1TB: Up to 22,000 IOPS 2TB: Up to 22,000 IOPS RANDOM WRITE (4KB, QD1)250GB: Up to 60,000 IOPS 500GB: Up to 60,000 IOPS 1TB: Up to 60,000 IOPS 2TB: Up to 60,000 IOPS Environment AVERAGE POWER CONSUMPTION (System Level)250GB: Average 5 W Maximum 7 W 512GB: Average 5.9 W Maximum 7.4 W 1TB: Average 6.2 W Maximum 8.9 W 2TB: Average 6.1 W Maximum 7.2 W (Burst mode) POWER CONSUMPTION (IDLE)Max. 35 mW POWER CONSUMPTION (DEVICE SLEEP)Max. 5 mW ALLOWABLE VOLTAGE3.3 V ± 5 % Allowable voltage RELIABILITY (MTBF)1.5 Million Hours Reliability OPERATING TEMPERATURE0 - 70 ℃ Shock1,500 G & 0.5 ms (Half sine) Accessories INSTALLATION KITNot Available Software MANAGEMENT SWMagician Software for SSD management Warranty MZ-V8P250BW (250GB)5 Years or 150 TBW MZ-V8P500BW (500GB)5 Years or 300 TBW MZ-V8P1T0BW (1TB)5 Years or 600 TBW MZ-V8P2T0BW (2TB)5 Years or 1200 TBW

SamSung Website

Links of NVMe M2 SSD 980PRO

Download of NVMe M2 SSD 980PRO
